The new Pro Spot SP-5.3 SMART Double Pulse MIG welder, is a 3 phase welder with microprocessor controls provide excellent welding performance on any materials and any thickness, regardless of weld time.

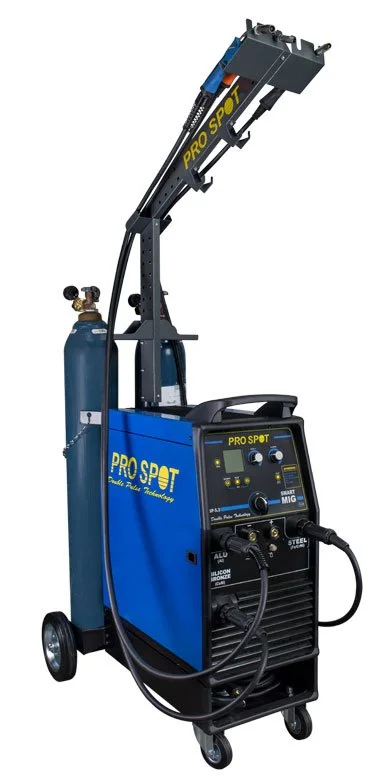

SP-5.3 | 3 PHASE SMART DOUBLE PULSE MIG WELDER
3 Phase MIG Welder
Industrial strength and ready for heavy welding applications in the shop.
Auto Switching
To switch welding different base metals, simply pick up the appropriate torch and pull the trigger, the microprocessor and weld programs do the rest.
Double Pulse
Safely and confidently repair aluminum and steel with automatically controlled pulse welding.
MIG Welding
Features three MIG welding torches and wire spools. Also includes preloaded weld programs and synergic curves for all common welding situations in automotive repair.
Multiple Welding Processes
Accessing multiple applications is as simple as pressing a button and making your selection.
Simply pick up the appropriate torch for the base metal you want to weld and pull the trigger — the SP-5.3 will automatically switch the welding program and synergic curve — no need to change wire spools or shielding gas.
AUTO SWITCHING
Preprogrammed synergic curves maintain optimal arc stability and weld quality.

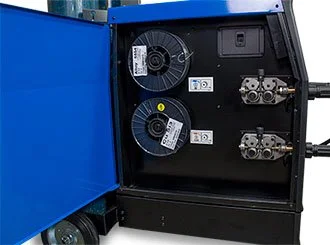

With three wire spools dedicated to three separate torches, the SP-5.3 is capable of easily switching between Steel, Aluminum and Silicon Bronze welding materials. This gives the operator seamless transitions from material to material and increased work flow which leads to a faster cycle time.

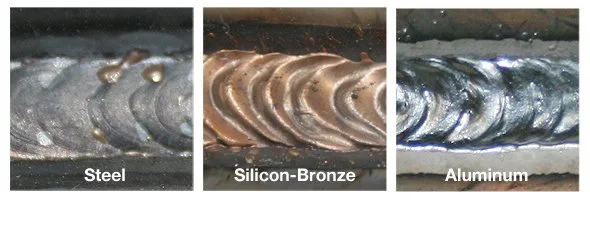

MIG WELDING

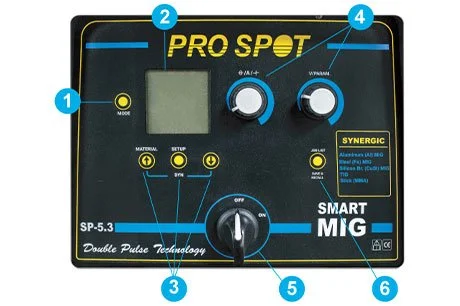

FRONT PANEL
The SP-5.3 features a LCD screen and an easy to operate front panel that makes user experience straightforward with fast turn knobs and yellow buttons indicating functions on the machine.
1. Process Selection:
- MIG/MAG Double Pulsed
- MIG/MAG Pulsed
- Root Welding
- MIG/MAG Synergic
- MIG/MAG Manual
- TIG DC Lift
- MMA
2. Large LCD Display
3. Navigation Key (Menu Setting)
4. Regulation Knobs
5. Power Knob
6. Save & Recall Parameters

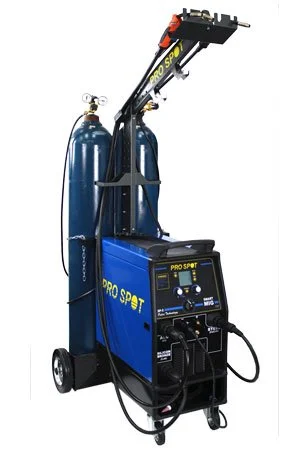

SP-5 SMART MIG
Single phase 208-240V 50-60Hz
5 torches — 3 MIG, 1 TIG, 1 stick
3 wire spools
2 gas cylinders

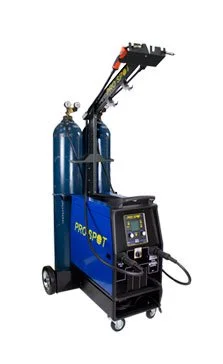

SP-2 SMART MIG
Single phase 208-240V 50-60Hz
2 torches — 2 MIG
2 wire spools
2 gas cylinders
SP-1 PULSE MIG
Single phase 208-240V 50-60Hz
2 torches — 1 MIG, 1 stick (TIG Optional)
1 wire spool
1 gas cylinder
PULSE MIG COMPARISON
TECHNICAL SPECIFICATIONS
Input Voltage:
Three Phase
220-400V 30A 50-60Hz
Amps / Volts, Min-Max:
MIG - 20A/15V - 350A/31.5V
MMA - 5A/20.2V - 270A/30.8V
TIG - 5A/10.2V - 350A/24V
Protection:
IP 22
Insulation:
H
System Weight:
137 lb. (62kg)
FEATURES
3ph. Machine
Multiprocess CC/CV
MIG/MAG Double Pulse Function
Root Welding Function
Multiple Welding Processes
Auto Switching
USB Port For Upgrades, Parameter Saves, and Diagnostics
LCD Display Provides Full Information To The Operator
12A Minimum Welding Current
User Defined Memories
Multi-Torch System
