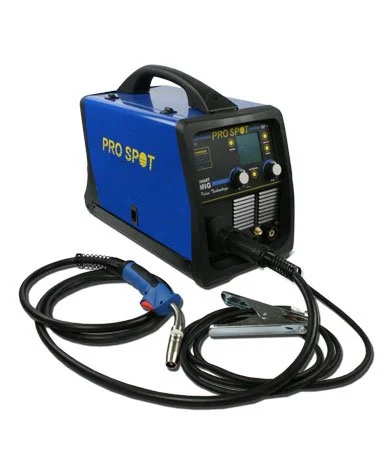

SP-1 | PULSE MIG

The SP-1 Pulse MIG is ideal for body shops welding stainless steel or aluminum. In synergic mode, the microprocessor controls optimal arc stability and weld quality. The SP-1 also comes equipped for MMA/stick welding. There is an optional TIG torch available. MIG and TIG welding can be done in continuous or pulse mode. Maximum power output of 200 A.

MIG Welding
Features preloaded weld programs and synergic curves for all the common welding situations in automotive repair.

TIG Welding
TIG welding can be done in continuous or pulse mode (optional).

MMA/Stick Welding
Everything needed for MMA/stick welding is included.

Universal Cart
The SP-1 has a Universal Cart Available to make moving the welder around your shop easier.

Pulse MIG Comparison
The main difference between the three pulse MIG series welders is the number of torches.

MIG WELDING

Preprogrammed synergic curves maintain optimal arc stability and weld quality.

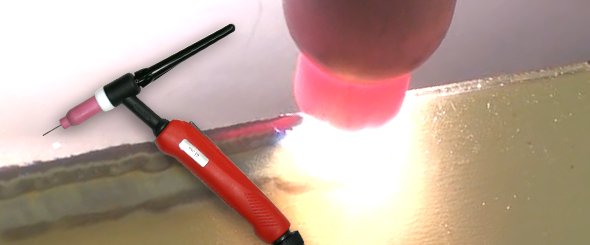

TIG WELDING (OPTIONAL)

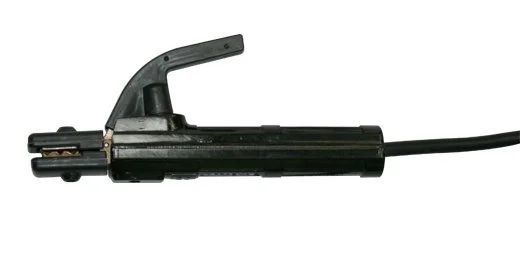

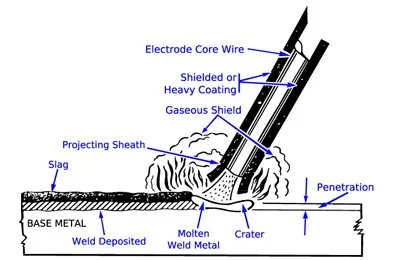

STICK (MMA) WELDING

The SP-1 comes with everything needed to perform Stick Welding.

PULSE MIG COMPARISON

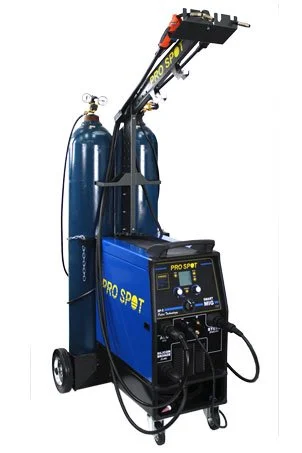

SP-5 SMART MIG

Single phase 208-240V 50-60Hz
5 torches — 3 MIG, 1 TIG, 1 stick
3 wire spools
2 gas cylinders

SP-2 SMART MIG

Single phase 208-240V 50-60Hz
2 torches — 2 MIG
2 wire spools
2 gas cylinders

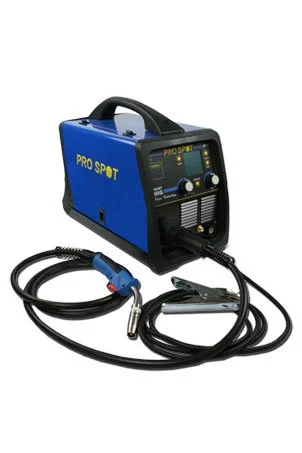

SP-1 PULSE MIG

Single phase 208-240V 50-60Hz
2 torches — 1 MIG, 1 stick (TIG Optional)
1 wire spool
1 gas cylinder

TECHNICAL SPECIFICATIONS

Input Voltage:

Single Phase

208 - 240V 50-60Hz

Amps / Volts, Min - Max:

MIG - 20A / 15V - 200A / 24V

TIG - 5A / 10V - 200A / 18V

MMA - 5A / 20.2V - 200A / 28V

Protection:
IP 22

Insulation:
H

System Weight:
43 lb. (2

FEATURES

2 Torches — 1 MIG, 1 Stick
TIG Welding (optional)
1 Wire Spool
Pulsed Welding
Continuous Mode
Inverter Technology
Preloaded Synergic Programs
Easy Feed Wire System
