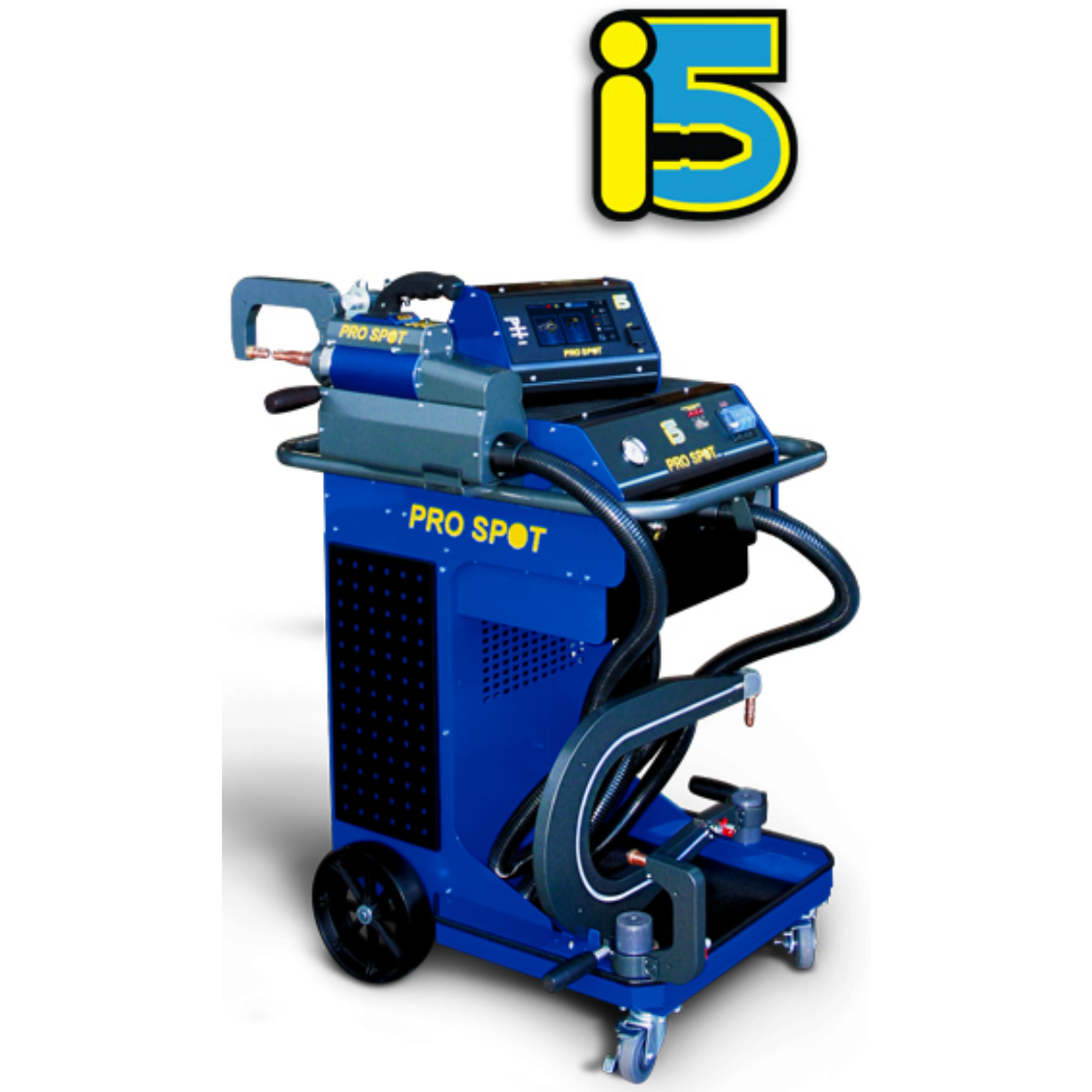

i5 | SMART WELDER
Pro Spot's i5 SMART Spot Welder features a new medium frequency trans-gun capable of delivering 14,500A with 1,243 lbs (565 daN) of electrode force. The i5 is designed to handle all new ultra high strength steels including Boron, etc. The operator can choose between two different modes AUTO and MANUAL for the two-sided spot welding.
Auto Weld
Based on the thickness and resistance feedback information, the i5 automatically delivers the correct weld power every time regardless of metal type, thickness, or corrosion protection between the metals.
Double-Acting Spot Gun
Pro Spot’s signature Spot Gun features a double-acting cylinder, and wide-spreading, self-aligning electrodes.
Water Cooled Weld Arms
The i5 features a 5 gal. (20L) radiator looped the cooling system all the way to the weld caps.
C to X Adapter
The X-type design is used on certain applications where the C-type arms cannot reach.
User Interface
The i5 comes with an all-new interface that is intuitive and easy to read thanks to the high-resolution full-color display. Powered by software designed by professional programmers, engineers, and welders.
Cabinet and Storage
The i5 comes with ample storage. The drawer under the front panel can be used to store smaller accessories while larger accessories, such as weld arms and cables, can be stored underneath for easy accessibility.
Single-Sided Welding
Quickly change between 2-sided and 1-sided welding. The i5 comes with several Single-Sided programs and accessories.
Notice the consistency of the weld nuggets and the heat-affected zone. The welds stay very consistent welding 2 layers (2.4mm), 3 layers, 4 layers, and 5 layers (6.0mm) as well as welding through boron steel. No weld settings were changed. The i5 automatically adjusted to the correct settings. Smart, very smart.
AUTO WELD
Measure
At the press of a button, the i5 measures the thickness of the metals automatically using the latest optical technology.
Sense
The i5 senses the metals to be welded from a pre-delivered current to determine the type of metal.
Weld
The i5 features a new medium frequency trans-gun capable of delivering 14,500A with 1,243 lbs (565 daN) of electrode force. Based on the thickness and resistance feedback information, the i5 delivers the correct weld power every time, regardless of the type of metal or thickness.
Actual welds made with the i5 in Auto Mode.
DOUBLE ACTING GUN

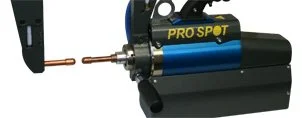

RESTING POSITION

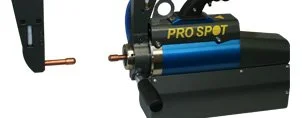

OPEN POSITION

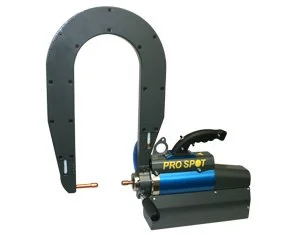

One of the most important features of the spot gun is its "double-acting" ability. Unlike any other trans-gun on the market, the i5 can spread the electrodes wide open with the push of a button without the operator ever having to remove his or her hands from their original positions. That not only saves time, but also assures that the operator doesn’t to have to alter their holding position in order to loosen and move the weld arm manually only to then re-tighten.
High contrast, full color touch screen display featuring over 3,000 OEM screens
(with weld data and repair recommendations) from several manufactures.
FULL-COLOR TOUCH SCREEN INTERFACE

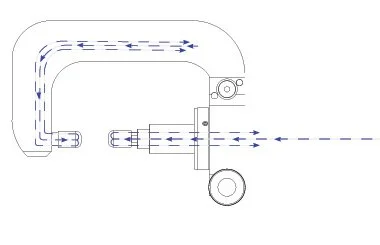

The coolant circulates from the radiator all the way to the tips of the liquid-cooled weld arms.

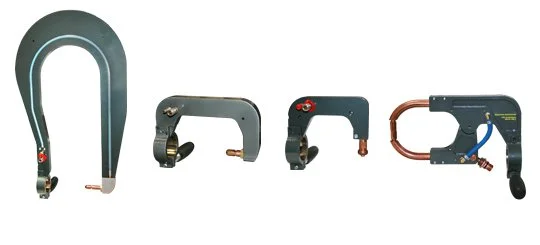

PSW-302
C-Arm
PSW-305
520mm U-Arm
PSW-52
Wheelhouse Arm
PSW-CX1
C to X Adaptor
WATER COOLED WELD ARMS
Simple and Strong
No assembly is needed. No cables needed. No more electrode changes needed. The current is transferred via a pivoting copper conductor which also allows for the buildup of electrode force.
X-Type Design
The X-type design is used on certain applications where the C-type arms cannot reach. 90% of all welding needs can be done with a C-type arm, but for some radiator support and truck bed pinch welds, the X-adapter is priceless. This invention from Pro Spot now makes it possible to weld where you never could before!

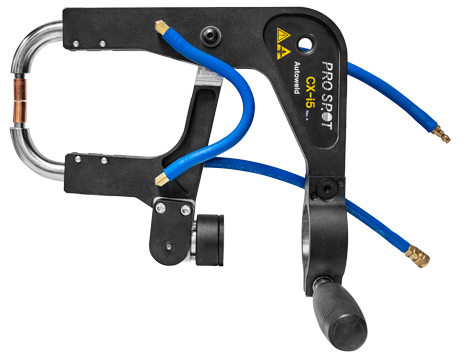

C TO X ADAPTER
A Perfect Fit
The all-new C2X Adapter was completely redesigned to weld with full force in Auto Weld Mode, the industry's first. There is no need to switch back and forth between programs. Put the new C2X Arm on the i5 and start welding.
The i5's screen housing can swivel a full 270°. Even though we've gone digital, the i5 still has a physical power switch and pressure gauge for convenience.
A hidden drawer has been installed to place everyday items that a welder might need to keep at hand such as extra tips, or single sided welding bits.
In the rear of the i5 you can locate the cooling fans, coolant tank cap, and level indicator, plus the power cord and air inlet. This is also where the overhead boom rests.
The i5 has tool racks installed on both sides and places for all of the extension arms that come standard with the machine. There are also upper and lower trays to lay tools on within reach.
CABINET AND STORAGE

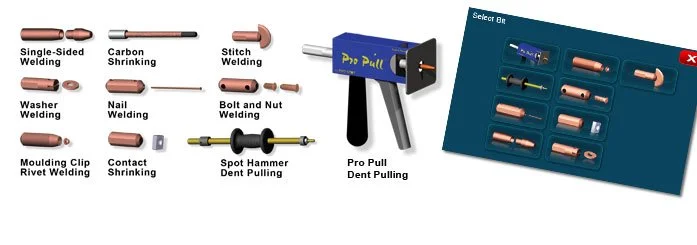

The i5 is available with Single-Sided welding systems. Quick change between 2-sided and 1-sided welding. i5 is pre-programmed with 60 Single-Sided programs.
To see more options, Click here for:
TECHNICAL SPECIFICATIONS
Input Voltage:
208 - 240V 50/60HZ
400 - 420V 50/60HZ
460 - 480V 50/60HZ
Welding Amperage:
14,500A max
Cable Length:
Input 30’ (10m)
weld cable 16’ (5m)
Electrode Pressure:
1243 lb (565 daN)
Liquid Cooling System:
Radiator / pump active loop
cooled to the weld caps.
Microprocessor:
Upgradable software platform
Protection: IP 21
Patents (3):
no. 5,239,155
no. 6,706,990
no. 6,539,770
Weight:314 lb (142 kg)
FEATURES
Auto Weld: The i5 delivers the correct weld current, weld time, and weld pressure every weld regardless of the type of metal or thickness at the push of a button.
Double-Acting Trans Gun: Unlike any other trans-gun on the market, the i5 can spread the electrodes wide open with the push of a button without the operator ever having to remove their hands from their original positions.
Full-Color Touch Screen Interface: High contrast, full-color touch screen display featuring over 3,000 OEM screens (with weld data and repair recommendations) from several top manufacturers.
Custom Water Cooled Weld Arms: The same versatility and ease of use that Pro Spot has made a standard in the industry, but with the added functionality of a 5 gal. (20L) radiator looped the cooling system all the way to the weld caps.
Advanced Upgrade System: Upgrade the software of your system via the same USB slot that you receive log-in and weld history info. No flash cards are required.
Overhead Boom and (optional) Tool Balancer
Hidden Tool Storage
