Battery Operated
The hybrid series welders are completely battery operated which means no special power installation is required, making them much more portable than traditional welders.

Double-Acting Gun
New innovative Spot Gun from Pro Spot features double-acting cylinder, wide-spreading electrodes that are also self-aligning.

Extension Arms
The Hybrid Spot comes with a variety of extension arms to accommodate any welding job.

Control Panel
The Hybrid Spot features a large control panel providing welding parameter control, current monitoring & much more.

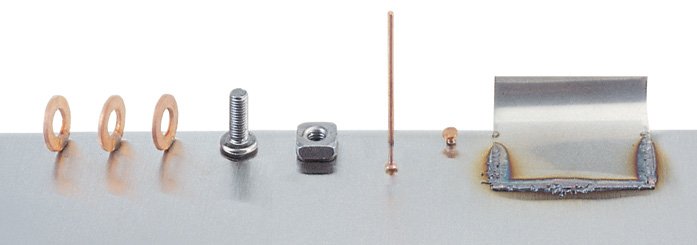

Single-Sided Welding
10 different Single-Sided welding applications give you the power and versatility to complete any job.

PHS-101 Brochure

PHS-101 Components List

PHS-101 OEM Approvals

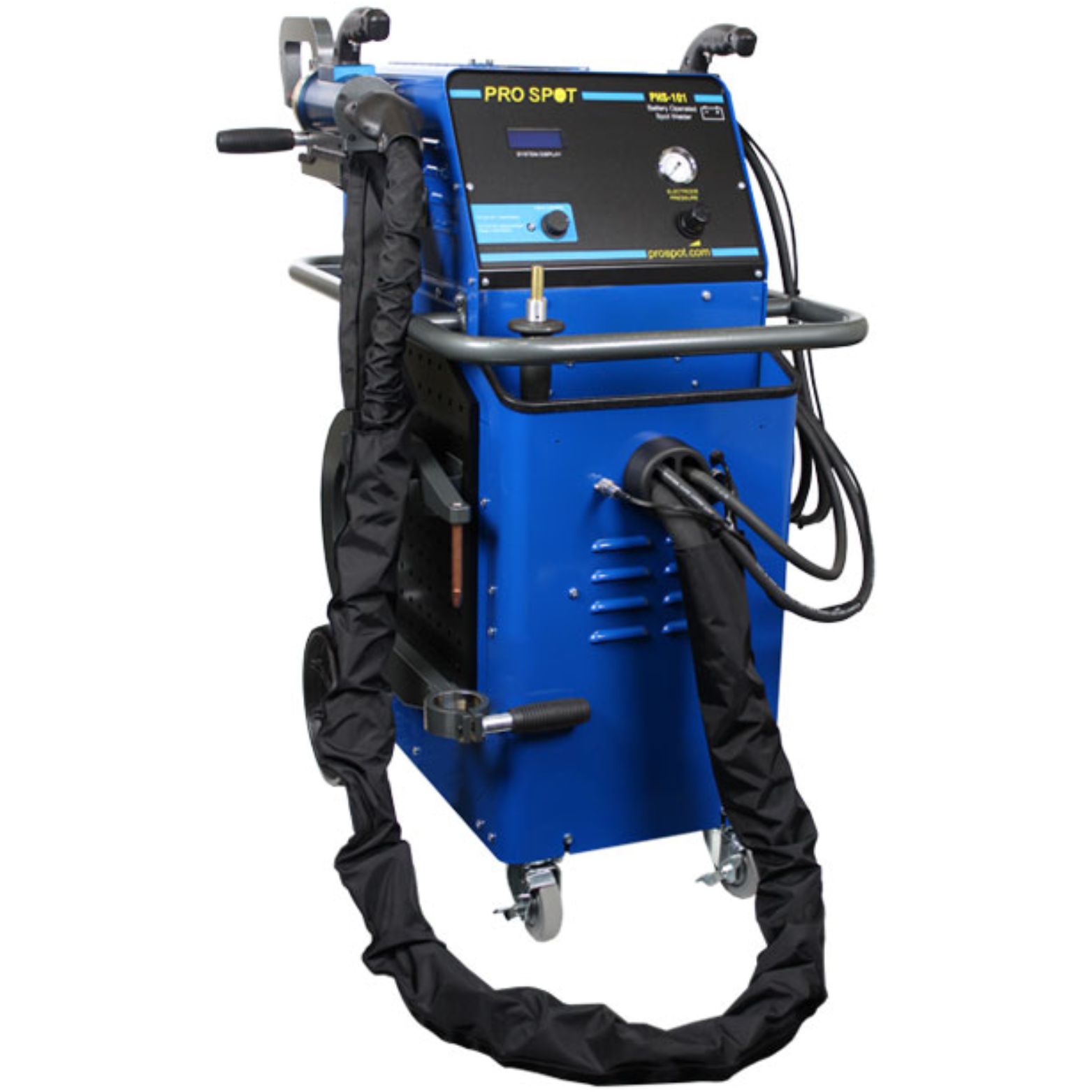

PHS-101 | BATTERY OPERATED WELDER

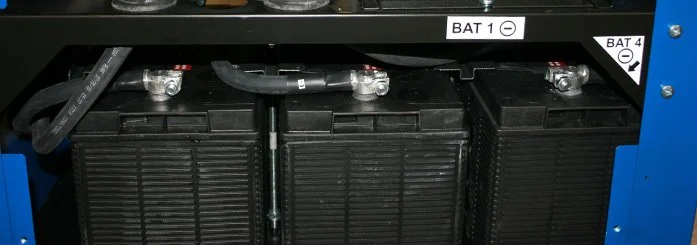

No 3-Phase required! Battery operated DC spot welding system with current monitoring. The Hybrid Spot now features weld current monitoring to show the operator how much current is delivered to each weld. The unit can also alert the user when the weld current falls below a preset level. The Hybrid Spot Resistance Spot Welder provides a great alternative spot welder where 3 phase power is not available or overloaded. The battery operated welder delivers high amperage DC weld current designed to produce powerful spot welds. No input power is required to operate the welder. The built-in charging system is capable of charging all batteries at the same time.

Convenient 110V/220V auto-sensing outlet on the back of the machine for easy re-charging! Can also be charged while welding. Load test of battery system included.

HYBRID SERIES - BATTERY OPERATED WELDER

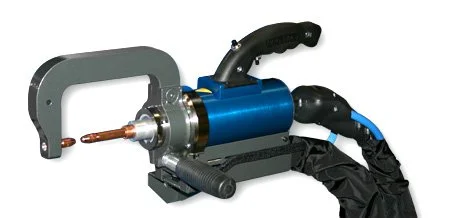

Push one button to open electrodes wide, then push the other button to close electrodes and weld. Pro Spot's PS-500 Spot Gun System features electrode pressure over 600 Lb. with all extension arm sizes.

PS-500 DOUBLE-ACTING SPOT GUN

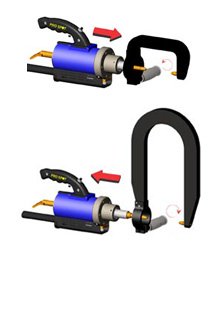

Changing the arms on our weld guns is quick and easy

PS-503 (optional)
600mm U-Arm

PS-305
508mm U-Arm

PS-306 (optional)
C-Arm Deep (280mm)

PS-403 (optional)
X-Adapter

PS-302
C-Arm

PS-52-5/8
Wheelhouse Arm

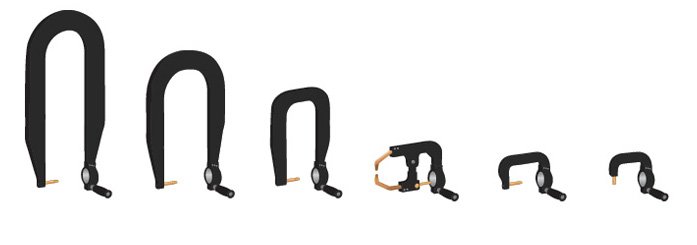

The Hybrid comes standard with several different types of weld arm extensions (508mm U-Arm, C-Arm, Wheelhouse Arm) and others are available upon request, so that you can tackle any welding problem with as much ease and accuracy as possible.

EXTENSION ARMS

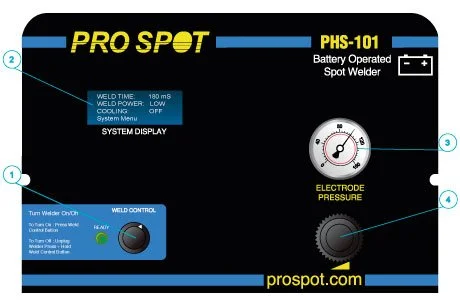

The PHS-101 features a simple and clean front panel layout, utilizing a weld control button and LCD screen to reduce power consumption maximizing the number of welds the PHS-101 is capable of handling.
