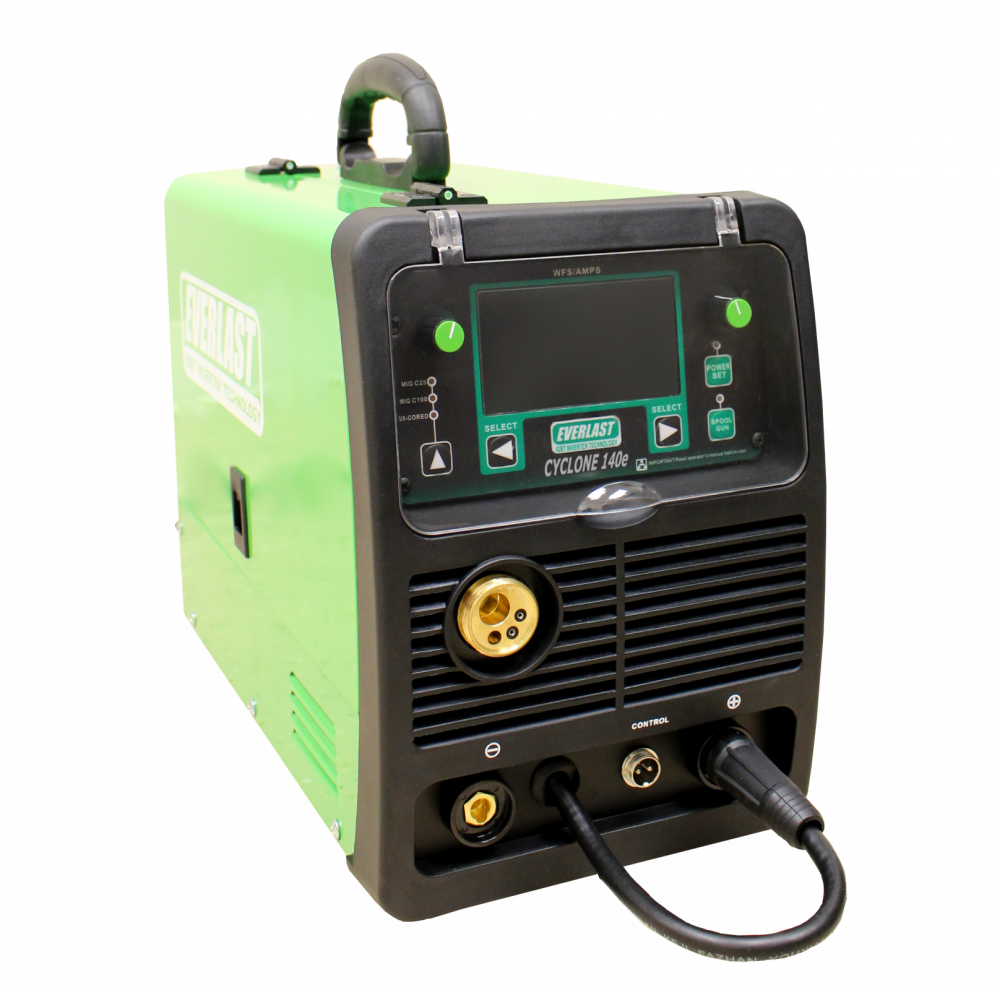

EVERLAST CYCLONE 140E

Cyclone 140E Manual

Download Manual:

Cyclone 140E Manual

Downloads:

Cyclone 140E Brochure

Features & Benefits:
Inverter based design lowers weight and power consumption while increasing duty cycle, and arc performance.
Stepless control of both the wire speed and voltage. No tapped settings.
Basic, familiar design allows easy transfer of operator skills.
Durable IGBT components offer longer life.
Stable, smooth arc with good wet in characteristics.
120V input design allows the unit to be used almost anywhere.
Sturdy drive mechanism is designed for years of use.
Standard Drive Rolls can feed .023"-.030" Wire diameter.
Designed to be used with both 4" and 8" Wire Spools.
Standard Equipment:

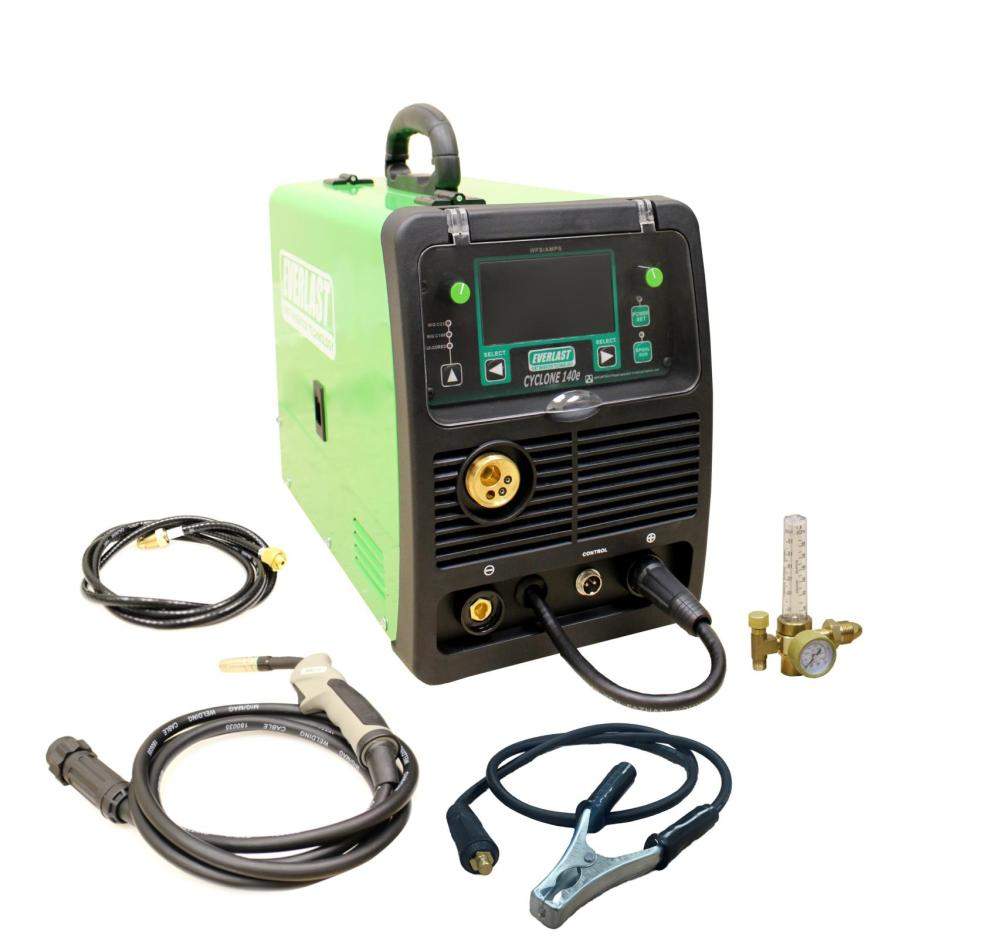

SN-15 MIG Gun with 10 ft. cable (uses SN-15 Contact Tip Holder).
Ground Clamp with 10 ft. cable and 25 DINSE Connector.
Argon/CO2 Regulator with Hose 6.5 ft.
Spare Contact Tip
Drive Roll: V Groove .023"-.030" (Single)
Optional Equipment:
Protective Cover
SM100N Spool Gun
15 series MIG Gun with 10 ft. cable
15 series MIG Gun with 15 ft. cable
MIG Consumables Kits
V Groove Drive Rolls (for Hard wire)
Flux Core Drive Rolls
U Groove Drive Rolls (for Aluminum wire)
NOVA Welding and Fabrication Table
NOVA Clamp and Tool Kit
PowerCart 250
Recommended Areas of Use:
Home shop
Garages
Muffler shops
Farm
Portable repair
Motorsports
Off-road
Recommended Metals:
Mild steel
Stainless steel
Chrome-moly
Aluminum (with Optional Spool Gun Only)
Type:
Digital/Micro-controlled IGBT Inverter
Output /Process Type:
MIG
Voltage/phase:
120V
Max Rated MIG Amps:
140A

MIG Amps/Volts @ Rated Duty Cycle:
140A/21V @ 25% Duty Cycle/40º C
90A/18.4V @ 60% Duty Cycle/40º C
70A/17.5V @ 100% Duty Cycle/40º C

Max Inrush ( I1MAX ) Amps:
37A

Maximum Rated (I1EFF ) Input Amps:
19A

OCV:
60V

MIG Output Range:
25A-140A/15.3V-21V

Variable MIG Inductance/Stick Arc Force Control:
No
Spool Gun Capable:
Yes
Standard Drive Roll wire size:
.023”-.030”
Separate wire feeder:
No, self contained
Number of Drive rollers:
2
Max Wire Feed Speed:
385 IPM under load.

Max Wire Roll Diameter:
8” (up to 12 lb)
Memory:
No
Pre-flow time:
Fixed

Post Flow Time:
Fixed

Flux Core:
Yes, Optional
Other Features:
Binzel/Trafimet Type 15 series Gun (appearance may vary from depicted).
Product Notes:
Digital IGBT Inverter MIG 25-140A PROCESS: GMAW

For use with a generator, make sure that the generator is rated by the generator manufacturer as "clean power", which is less than 5% Total Harmonic Distortion (THD). Use with a generator rated for at least 4800 surge watts for maximum 140A output.

This unit does not come equipped with Flux Core drive rolls. For flux core use, purchase drive roller separately under "MIG Parts"

For Maximum output on 120V, use a delay trip breaker or slow blow fuse rated for 30 amps or tripping of the breaker will occur.
Minimum/Maximum:
Up to maximum of 3/16" single pass Steel/Stainless
Up to maximum of 3/8" multiple pass Steel/Stainless
Minimum of 24 gauge cabability Steel/Stainless
Use a spool gun to weld aluminum (SM100N)
Weld a minimum of 14 Gauge Aluminum
Weld a maximum of 1/8" Aluminum single pass
Weld a maximum of 3/16" Aluminum multi-pass

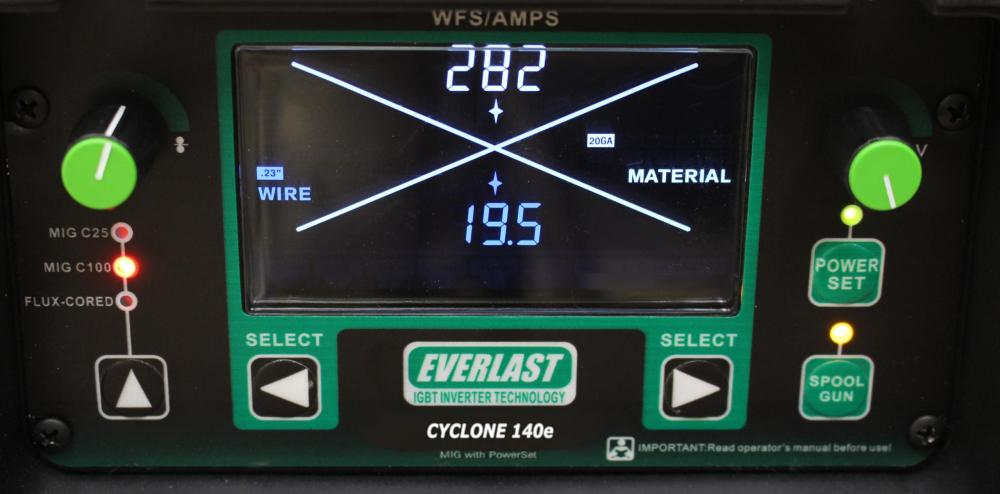

For well over a decade, Everlast has been of the leading edge of the effort to pioneer the rise of reliable and affordable inverter MIG welders. The success that the old i-MIG inverter series enjoyed is a thing of legend. In fact, when we first introduced the inverter based i-MIG 140E, the industry was sent scrambling to figure out what kind of whirlwind had just hit. While other companies were (and still are) trying ways to "shoehorn" old, outdated transformer technology into more compact frames to try to compete in the new lightweight 120V, 140A MIG class, Everlast was hard at work to develop a truly new second generation. Once again, Everlast is leading the way with the introduction of the new "Economy" class of welders. In honor of the whirlwind storm that was created in the market when the i-MIG series was released, Everlast has once again stirred the dust with the all new Cyclone 140E. It is one of the most advanced 120V inverter MIG only units available in the market. And, don't worry, it is still affordable for the budget conscious. While new Cyclone 140E retains it's budget price, it now includes a PowerSet mode designed easy setup and can be used by both the beginner and professional welder alike. The unit is rounded out with a new, easy to read LCD screen for those that like to "know" exactly the volt and wire feed speed without having to guess or get "close enough. This also improves both accuracy and repeatability of settings. We've kept the portabilty theme with a fresh, good looking design that will allow the customer take the unit anywhere that is needed. And it continues to deliver the same old impressive duty cycle and power that cannot be matched by competing transformer models on the market.
