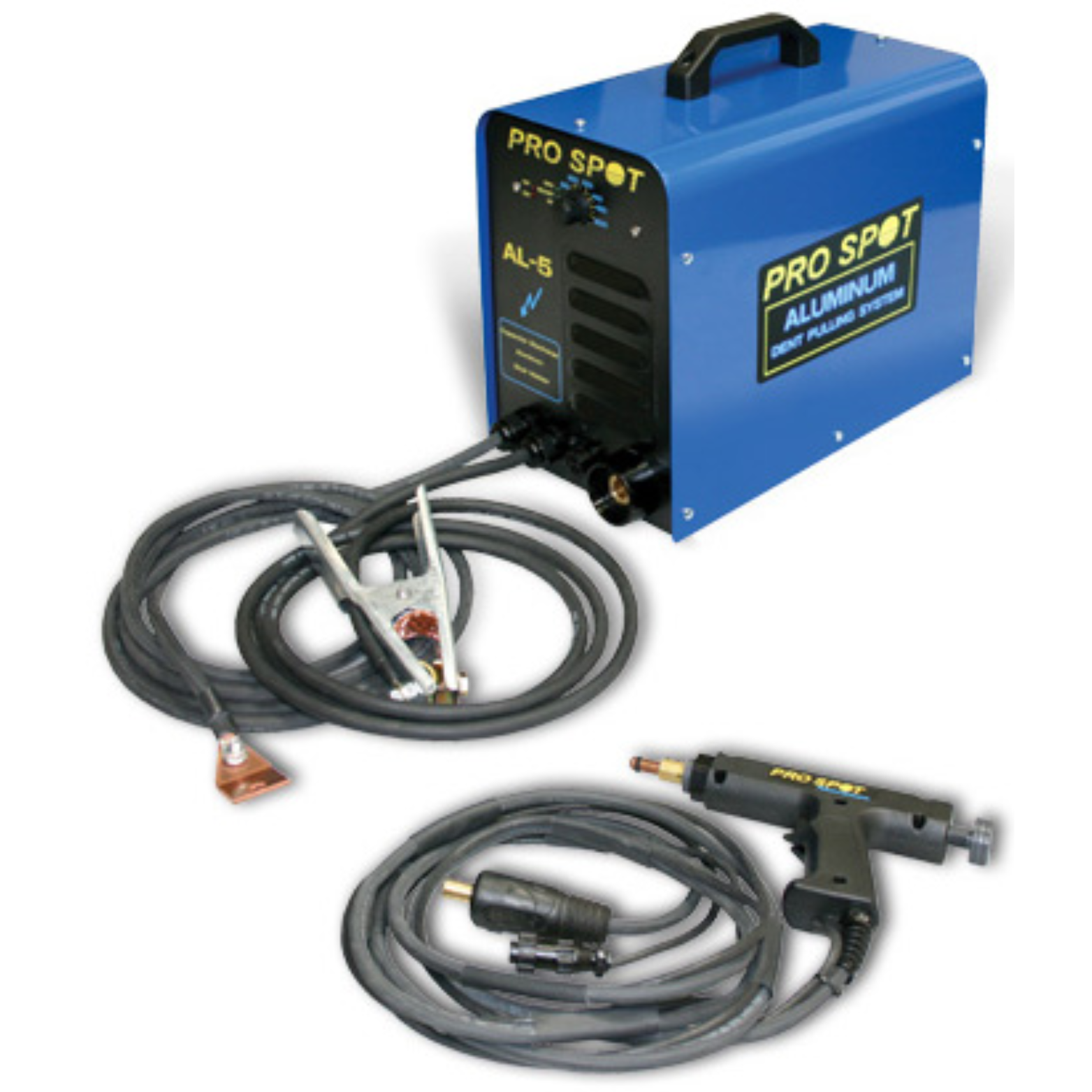

AL-5 | ALUMINUM DENT PULLING SYSTEM

Pro Spot AL-5 Capacitor Discharge Stud Welder is designed for aluminum dent pulling and can also be used with steel studs for welding to UHSS panels with no or very little heat applied to the panels. The welder is very easy to use and is controlled by one knob to adjust weld power. The welder auto detects the line voltage between 110 VAC - 240 VAC.

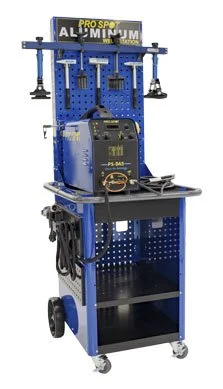

Aluminum Weld Station
The AL-5 Aluminum Dent Pulling System comes packaged with Pro Spot's Aluminum Weld Station

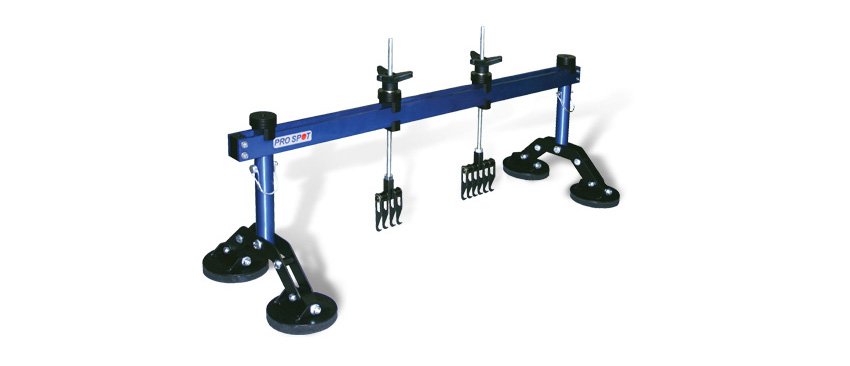

Pull Bar
Designed for both aluminum and steel dent pulling. Includes adjustable foot swivel pads for mounting both vertically and horizontally.

Pro Pull Dent Puller
(Optional) Pro Pull is the latest in dent pulling technology for the collision industry. This tool makes dent pulling an art.

Dent Pulling
Simply insert the stud into the front of the weld shaft, press down and weld. Studs will be securely fastened to the surface and will allow you to pull dents out of the panel.

The Pro Spot AL-5 Capacitor Discharge Stud Welder is capable of welding studs that can be utilized by the Pro Spot Dent Pull Bar. The dent pull bar makes dent pulling extremely easy, quick and accurate.

DENT PULLING

The Pro Spot AL-5 Capacitor Discharge Stud Welder has an easy-to-use design that will have you welding in seconds. The AL-5 comes with a variety of different tools and studs in order to accommodate your specific welding needs.

FEATURES

  • Aluminum Stud Welding

  • Pull Bar Dent Pulling

  • Pro Pull Dent Pulling

Pro Pull Dent Pulling (optional). Position the weld tip on the bottom of the dent, weld, then squeeze the handle to initialize the pulling action. The pull bar can also adapt to the Pro Pull system for isolated dent pulling.

PR0-66 Pro Pull shown with optional SA-0028 Single Pull System

TECHNICAL SPECIFICATIONS

  • 110 - 220V (Auto Detect)

  • Up to 20,000A

  • 10 Ft.

  • Standard 4mm x 16mm

    M5, M6, M8 Optional
